This research was carried out with Abruzzo Bodziak architects as a central part of their “Air Rights-of-Way” proposal sponsored by Audi Urban Future Initiative during the Festival of Ideas for the New City.
Abruzzo Bodziak’s project investigates the role played by the New York City Zoning Code in the production of architectural form. The translation from abstract rules to three-dimensional building volumes was entirely automated, giving the designers the ability to see the potential effects of even minor zoning alterations to the overall make-up of an entire section of New York City. Learn more about it on Abruzzo Bodziak’s website or have a look at the project boards. The beautiful physical model is not to be missed.

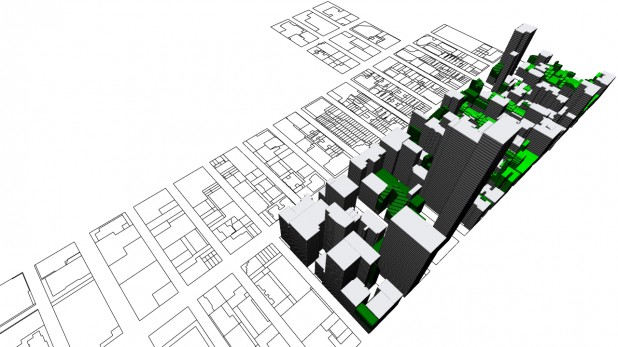

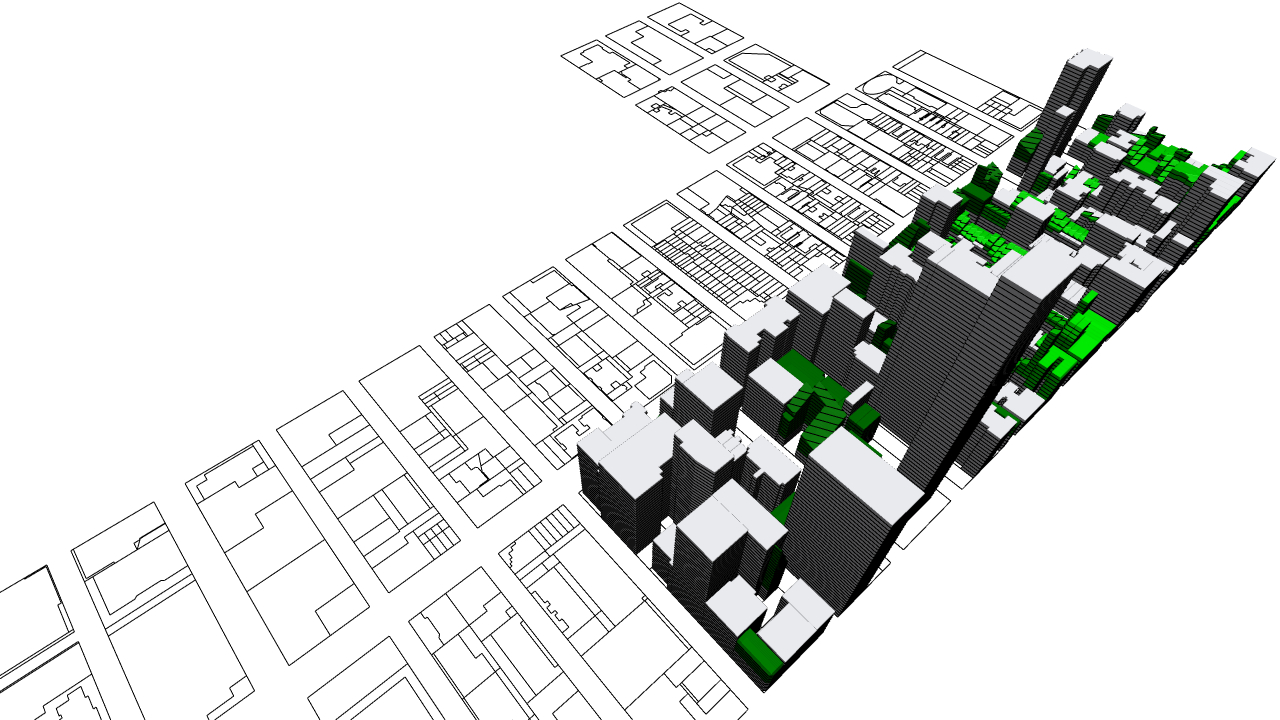

ProjectNY Video Frame 014318
Ten of seventy-two blocks.

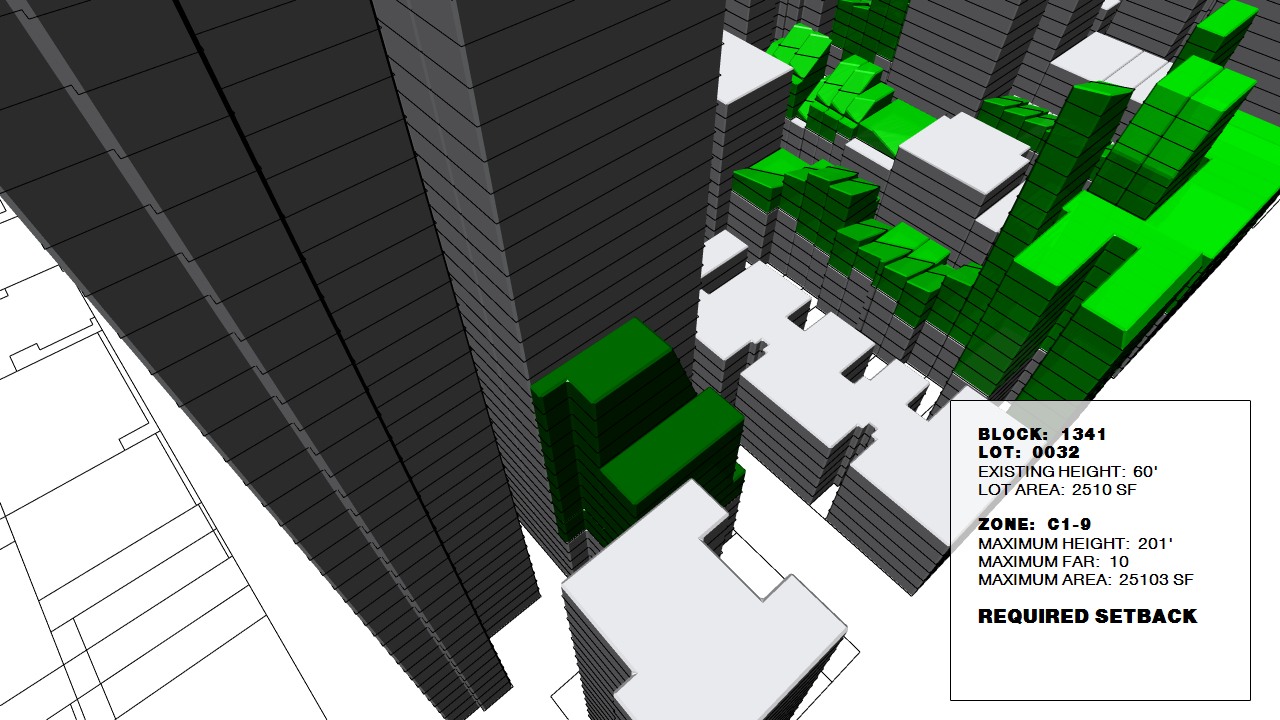

ProjectNY Video Frame 012433
Procedurally generated model showing 10 of the project's 72 blocks.

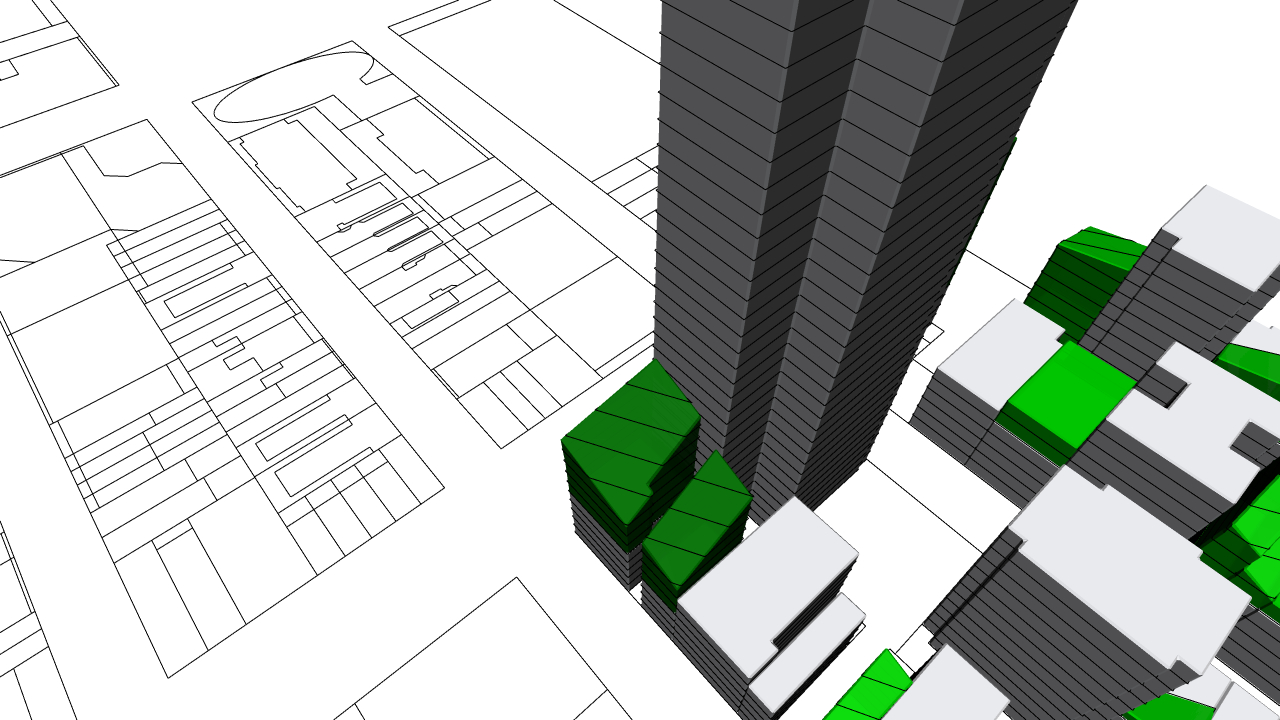

ProjectNY Video Frame 003023
Different zoning classifications are distinguished by tones of green.

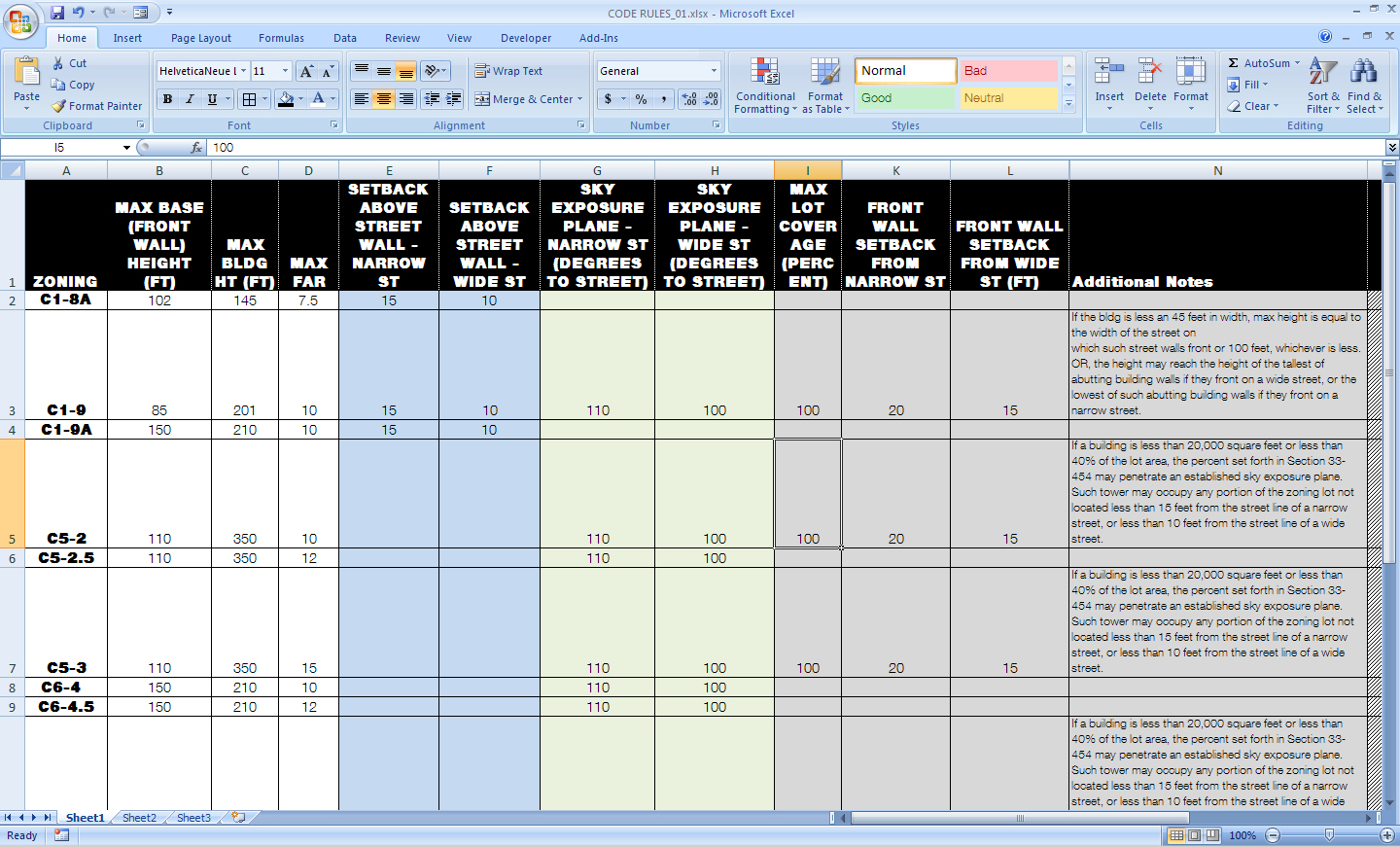

2030 proposed zoning rules
This Excel table consolidates existing zoning rules and proposes alterations that form the heart of Abruzzo Bodziak Architect's design proposal for future growth. By changing data in this table, the designers were able to build digital massing models for a variety of zoning scenarios.

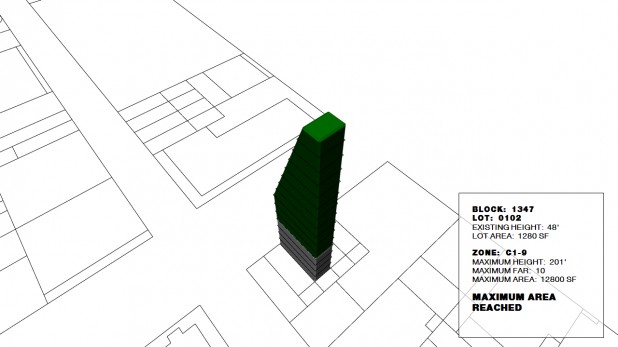

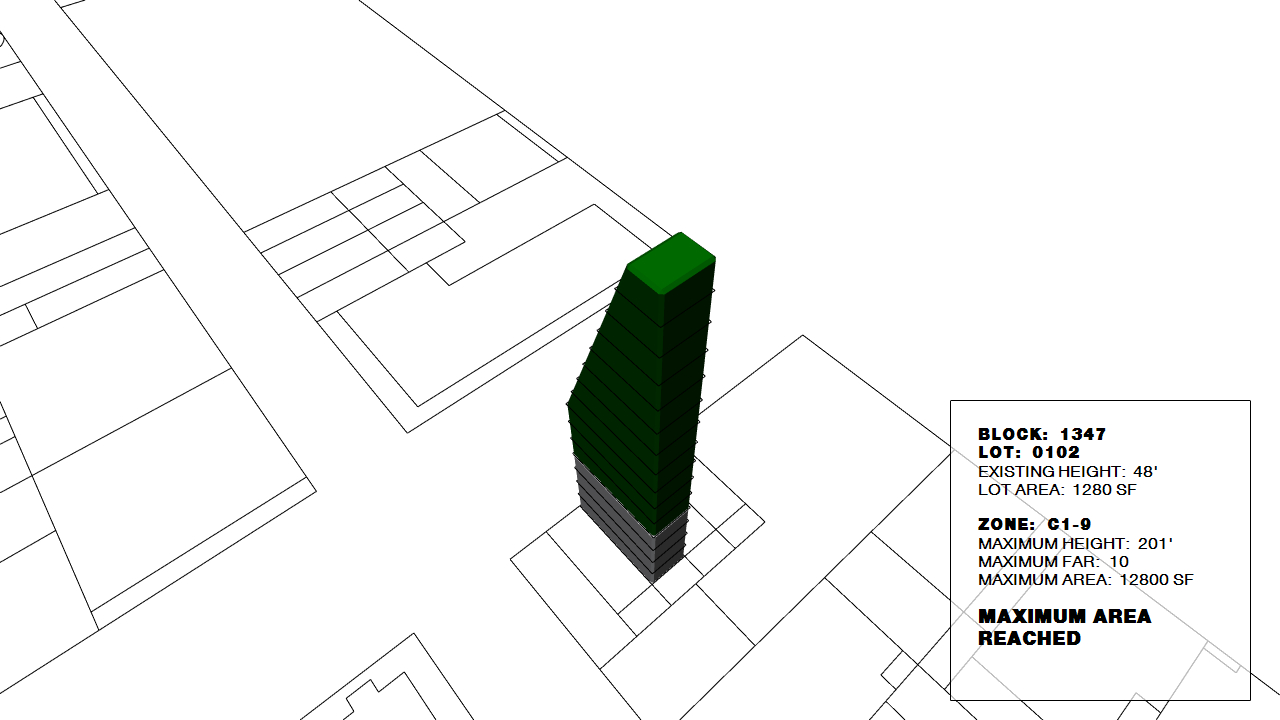

ProjectNY Video Frame 000343
Alternate zoning rules for each site included floor area limits, height restriction and solar orientation requirements.

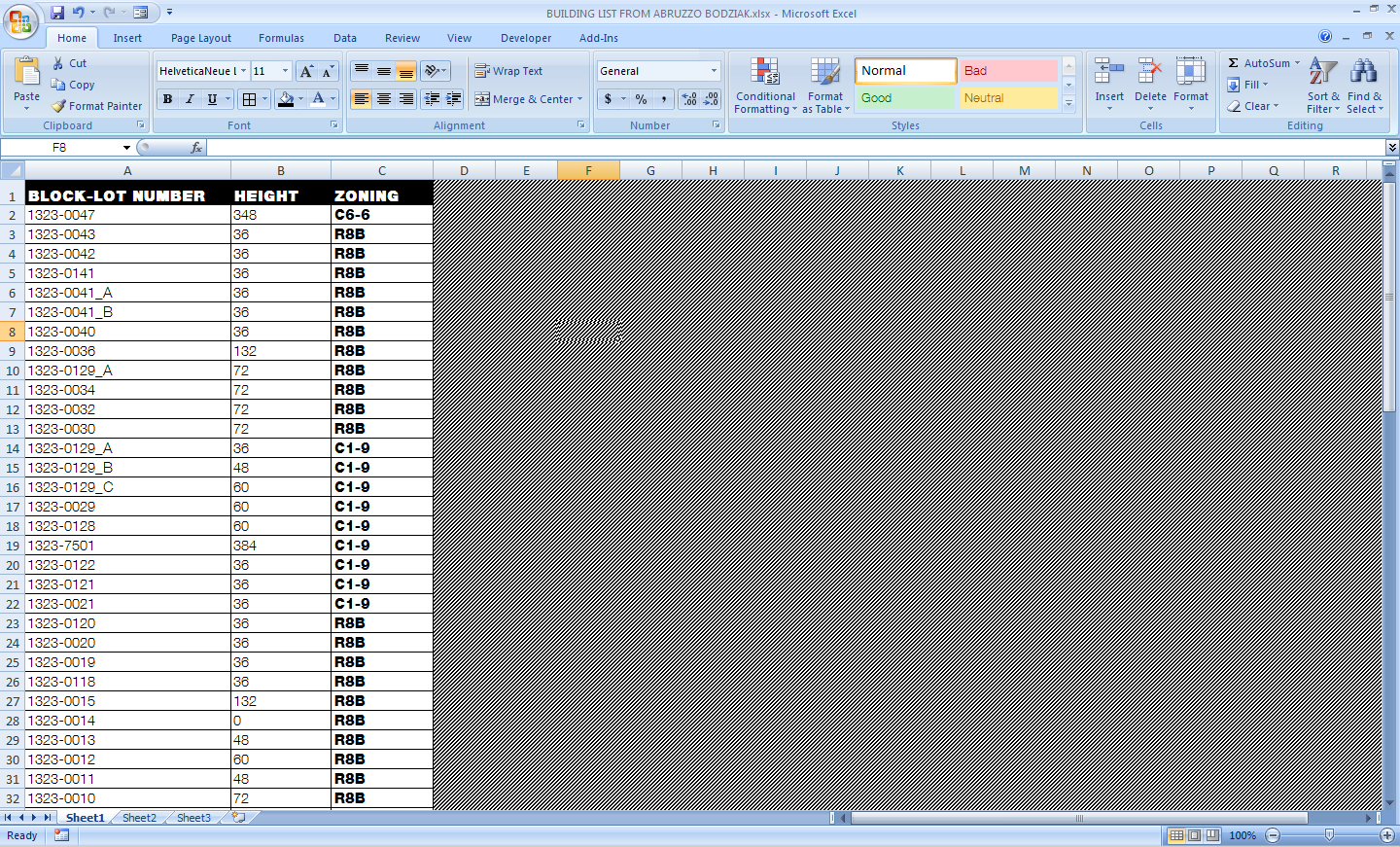

Excel building list
This excel file was provided by Abruzzo Bodziak Architects. It maps building block and lot numbers to zoning information and existing building heights. Using this file it was possible to procedurally model and aproximation of existing site conditions.

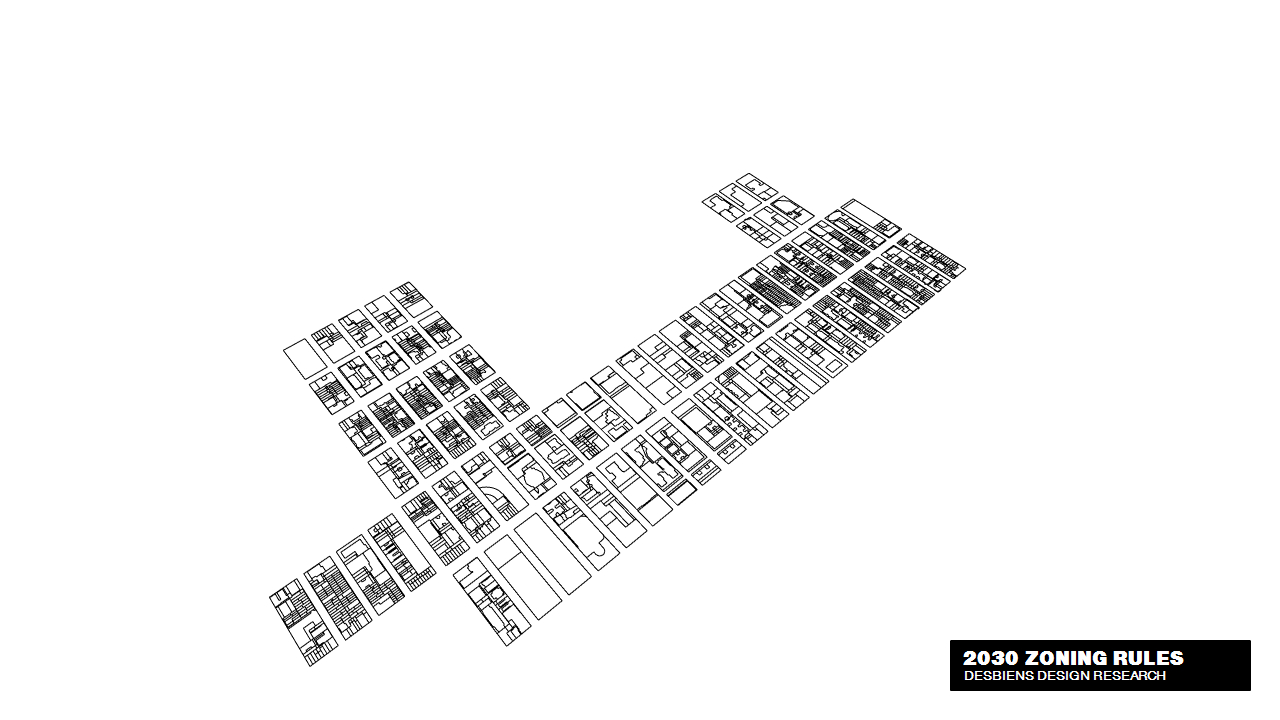

ProjectNY Video Frame 000001
The project site for Abruzzo Bodziak's proposal included 72 blocks of commercial and residential real estate on Manhattan's Upper East Side.
